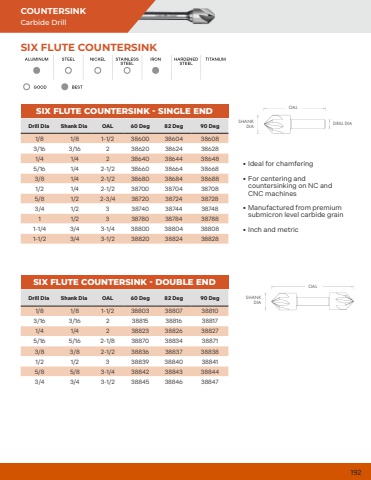

192 192SIX FLUTE COUNTERSINKSIX FLUTE COUNTERSINK - SINGLE ENDDrill Dia Shank Dia OAL 60 Deg 82 Deg 90 Deg1/8 1/8 1-1/2 38600 38604 386083/16 3/16 2 38620 38624 386281/4 1/4 2 38640 38644 386485/16 1/4 2-1/2 38660 38664 386683/8 1/4 2-1/2 38680 38684 386881/2 1/4 2-1/2 38700 38704 387085/8 1/2 2-3/4 38720 38724 387283/4 1/2 3 38740 38744 387481 1/2 3 38780 38784 387881-1/4 3/4 3-1/4 38800 38804 388081-1/2 3/4 3-1/2 38820 38824 38828SIX FLUTE COUNTERSINK - DOUBLE ENDDrill Dia Shank Dia OAL 60 Deg 82 Deg 90 Deg1/8 1/8 1-1/2 38803 38807 388103/16 3/16 2 38815 38816 388171/4 1/4 2 38823 38826 388275/16 5/16 2-1/8 38870 38834 388713/8 3/8 2-1/2 38836 38837 388381/2 1/2 3 38839 38840 388415/8 5/8 3-1/4 38842 38843 388443/4 3/4 3-1/2 38845 38846 38847COUNTERSINKCarbide Drill%u2022 Ideal for chamfering%u2022 For centering and countersinking on NC and CNC machines%u2022 Manufactured from premium submicron level carbide grain%u2022 Inch and metricOALDRILL DIA SHANKDIAOALSHANKDIA
