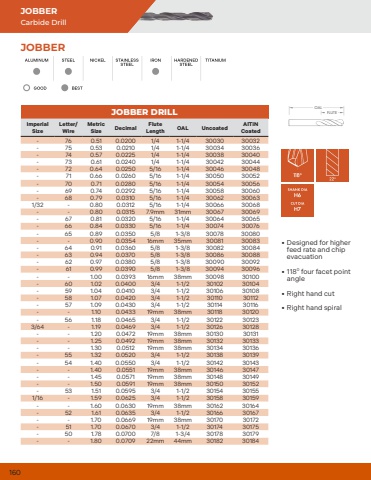

160 160JOBBERCarbide DrillJOBBER JOBBER DRILLImperial SizeLetter/WireMetric Size Decimal Flute Length OAL Uncoated AlTiN Coated- 76 0.51 0.0200 1/4 1-1/4 30030 30032- 75 0.53 0.0210 1/4 1-1/4 30034 30036- 74 0.57 0.0225 1/4 1-1/4 30038 30040- 73 0.61 0.0240 1/4 1-1/4 30042 30044- 72 0.64 0.0250 5/16 1-1/4 30046 30048- 71 0.66 0.0260 5/16 1-1/4 30050 30052- 70 0.71 0.0280 5/16 1-1/4 30054 30056- 69 0.74 0.0292 5/16 1-1/4 30058 30060- 68 0.79 0.0310 5/16 1-1/4 30062 300631/32 - 0.80 0.0312 5/16 1-1/4 30066 30068- - 0.80 0.0315 7.9mm 31mm 30067 30069- 67 0.81 0.0320 5/16 1-1/4 30064 30065- 66 0.84 0.0330 5/16 1-1/4 30074 30076- 65 0.89 0.0350 5/8 1-3/8 30078 30080- - 0.90 0.0354 16mm 35mm 30081 30083- 64 0.91 0.0360 5/8 1-3/8 30082 30084- 63 0.94 0.0370 5/8 1-3/8 30086 30088- 62 0.97 0.0380 5/8 1-3/8 30090 30092- 61 0.99 0.0390 5/8 1-3/8 30094 30096- - 1.00 0.0393 16mm 38mm 30098 30100- 60 1.02 0.0400 3/4 1-1/2 30102 30104- 59 1.04 0.0410 3/4 1-1/2 30106 30108- 58 1.07 0.0420 3/4 1-1/2 30110 30112- 57 1.09 0.0430 3/4 1-1/2 30114 30116- - 1.10 0.0433 19mm 38mm 30118 30120- 56 1.18 0.0465 3/4 1-1/2 30122 301233/64 - 1.19 0.0469 3/4 1-1/2 30126 30128- - 1.20 0.0472 19mm 38mm 30130 30131- - 1.25 0.0492 19mm 38mm 30132 30133- - 1.30 0.0512 19mm 38mm 30134 30136- 55 1.32 0.0520 3/4 1-1/2 30138 30139- 54 1.40 0.0550 3/4 1-1/2 30142 30143- - 1.40 0.0551 19mm 38mm 30146 30147- - 1.45 0.0571 19mm 38mm 30148 30149- - 1.50 0.0591 19mm 38mm 30150 30152- 53 1.51 0.0595 3/4 1-1/2 30154 301551/16 - 1.59 0.0625 3/4 1-1/2 30158 30159- - 1.60 0.0630 19mm 38mm 30162 30164- 52 1.61 0.0635 3/4 1-1/2 30166 30167- - 1.70 0.0669 19mm 38mm 30170 30172- 51 1.70 0.0670 3/4 1-1/2 30174 30175- 50 1.78 0.0700 7/8 1-3/4 30178 30179- - 1.80 0.0709 22mm 44mm 30182 30184%u2022 Designed for higher feed rate and chip evacuation%u2022 1180 four facet point angle%u2022 Right hand cut%u2022 Right hand spiralFLUTE OAL
