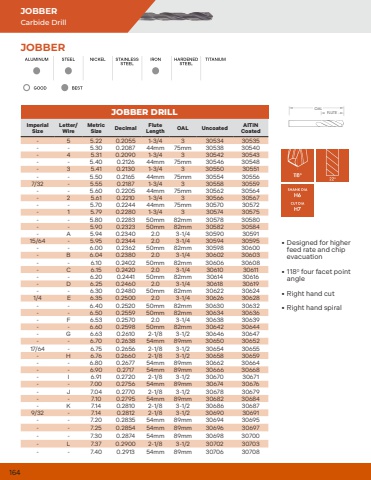

164 164JOBBERCarbide DrillJOBBER JOBBER DRILLImperial SizeLetter/WireMetric Size Decimal Flute Length OAL Uncoated AlTiN Coated- 5 5.22 0.2055 1-3/4 3 30534 30535- - 5.30 0.2087 44mm 75mm 30538 30540- 4 5.31 0.2090 1-3/4 3 30542 30543- - 5.40 0.2126 44mm 75mm 30546 30548- 3 5.41 0.2130 1-3/4 3 30550 30551- - 5.50 0.2165 44mm 75mm 30554 305567/32 - 5.55 0.2187 1-3/4 3 30558 30559- - 5.60 0.2205 44mm 75mm 30562 30564- 2 5.61 0.2210 1-3/4 3 30566 30567- - 5.70 0.2244 44mm 75mm 30570 30572- 1 5.79 0.2280 1-3/4 3 30574 30575- - 5.80 0.2283 50mm 82mm 30578 30580- - 5.90 0.2323 50mm 82mm 30582 30584- A 5.94 0.2340 2.0 3-1/4 30590 3059115/64 - 5.95 0.2344 2.0 3-1/4 30594 30595- - 6.00 0.2362 50mm 82mm 30598 30600- B 6.04 0.2380 2.0 3-1/4 30602 30603- - 6.10 0.2402 50mm 82mm 30606 30608- C 6.15 0.2420 2.0 3-1/4 30610 30611- - 6.20 0.2441 50mm 82mm 30614 30616- D 6.25 0.2460 2.0 3-1/4 30618 30619- - 6.30 0.2480 50mm 82mm 30622 306241/4 E 6.35 0.2500 2.0 3-1/4 30626 30628- - 6.40 0.2520 50mm 82mm 30630 30632- - 6.50 0.2559 50mm 82mm 30634 30636- F 6.53 0.2570 2.0 3-1/4 30638 30639- - 6.60 0.2598 50mm 82mm 30642 30644- G 6.63 0.2610 2-1/8 3-1/2 30646 30647- - 6.70 0.2638 54mm 89mm 30650 3065217/64 - 6.75 0.2656 2-1/8 3-1/2 30654 30655- H 6.76 0.2660 2-1/8 3-1/2 30658 30659- - 6.80 0.2677 54mm 89mm 30662 30664- - 6.90 0.2717 54mm 89mm 30666 30668- I 6.91 0.2720 2-1/8 3-1/2 30670 30671- - 7.00 0.2756 54mm 89mm 30674 30676- J 7.04 0.2770 2-1/8 3-1/2 30678 30679- - 7.10 0.2795 54mm 89mm 30682 30684- K 7.14 0.2810 2-1/8 3-1/2 30686 306879/32 - 7.14 0.2812 2-1/8 3-1/2 30690 30691- - 7.20 0.2835 54mm 89mm 30694 30695- - 7.25 0.2854 54mm 89mm 30696 30697- - 7.30 0.2874 54mm 89mm 30698 30700- L 7.37 0.2900 2-1/8 3-1/2 30702 30703- - 7.40 0.2913 54mm 89mm 30706 30708%u2022 Designed for higher feed rate and chip evacuation%u2022 1180 four facet point angle%u2022 Right hand cut%u2022 Right hand spiralFLUTE OAL
