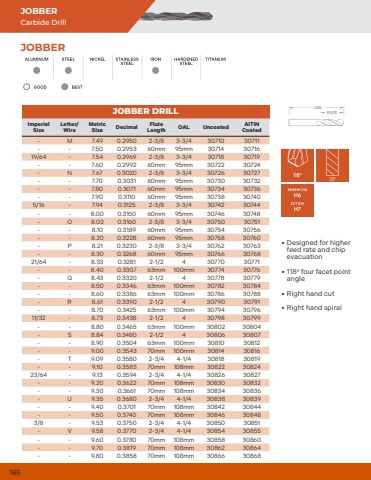

165JOBBER %u2022 Designed for higher feed rate and chip evacuation%u2022 1180 four facet point angle%u2022 Right hand cut%u2022 Right hand spiralJOBBERCarbide DrillJOBBER DRILLImperial SizeLetter/WireMetric Size Decimal Flute Length OAL Uncoated AlTiN Coated- M 7.49 0.2950 2-3/8 3-3/4 30710 30711- - 7.50 0.2953 60mm 95mm 30714 3071619/64 - 7.54 0.2969 2-3/8 3-3/4 30718 30719- - 7.60 0.2992 60mm 95mm 30722 30724- N 7.67 0.3020 2-3/8 3-3/4 30726 30727- - 7.70 0.3031 60mm 95mm 30730 30732- - 7.80 0.3071 60mm 95mm 30734 30736- - 7.90 0.3110 60mm 95mm 30738 307405/16 - 7.94 0.3125 2-3/8 3-3/4 30742 30744- - 8.00 0.3150 60mm 95mm 30746 30748- O 8.03 0.3160 2-3/8 3-3/4 30750 30751- - 8.10 0.3189 60mm 95mm 30754 30756- - 8.20 0.3228 60mm 95mm 30758 30760- P 8.21 0.3230 2-3/8 3-3/4 30762 30763- - 8.30 0.3268 60mm 95mm 30766 3076821/64 - 8.33 0.3281 2-1/2 4 30770 30771- - 8.40 0.3307 63mm 100mm 30774 30776- Q 8.43 0.3320 2-1/2 4 30778 30779- - 8.50 0.3346 63mm 100mm 30782 30784- - 8.60 0.3386 63mm 100mm 30786 30788- R 8.61 0.3390 2-1/2 4 30790 30791- - 8.70 0.3425 63mm 100mm 30794 3079611/32 - 8.73 0.3438 2-1/2 4 30798 30799- - 8.80 0.3465 63mm 100mm 30802 30804- S 8.84 0.3480 2-1/2 4 30806 30807- - 8.90 0.3504 63mm 100mm 30810 30812- - 9.00 0.3543 70mm 100mm 30814 30816- T 9.09 0.3580 2-3/4 4-1/4 30818 30819- - 9.10 0.3583 70mm 108mm 30822 3082423/64 - 9.13 0.3594 2-3/4 4-1/4 30826 30827- - 9.20 0.3622 70mm 108mm 30830 30832- - 9.30 0.3661 70mm 108mm 30834 30836- U 9.35 0.3680 2-3/4 4-1/4 30838 30839- - 9.40 0.3701 70mm 108mm 30842 30844- - 9.50 0.3740 70mm 108mm 30846 308483/8 - 9.53 0.3750 2-3/4 4-1/4 30850 30851- V 9.58 0.3770 2-3/4 4-1/4 30854 30855- - 9.60 0.3780 70mm 108mm 30858 30860- - 9.70 0.3819 70mm 108mm 30862 30864- - 9.80 0.3858 70mm 108mm 30866 30868FLUTE OAL
