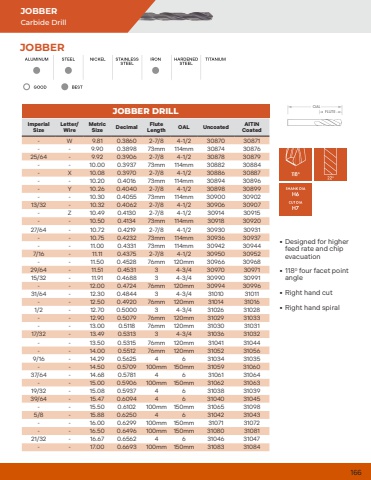

166JOBBER DRILLImperial SizeLetter/WireMetric Size Decimal Flute Length OAL Uncoated AlTiN Coated- W 9.81 0.3860 2-7/8 4-1/2 30870 30871- - 9.90 0.3898 73mm 114mm 30874 3087625/64 - 9.92 0.3906 2-7/8 4-1/2 30878 30879- - 10.00 0.3937 73mm 114mm 30882 30884- X 10.08 0.3970 2-7/8 4-1/2 30886 30887- - 10.20 0.4016 73mm 114mm 30894 30896- Y 10.26 0.4040 2-7/8 4-1/2 30898 30899- - 10.30 0.4055 73mm 114mm 30900 3090213/32 - 10.32 0.4062 2-7/8 4-1/2 30906 30907- Z 10.49 0.4130 2-7/8 4-1/2 30914 30915- - 10.50 0.4134 73mm 114mm 30918 3092027/64 - 10.72 0.4219 2-7/8 4-1/2 30930 30931- - 10.75 0.4232 73mm 114mm 30936 30937- - 11.00 0.4331 73mm 114mm 30942 309447/16 - 11.11 0.4375 2-7/8 4-1/2 30950 30952- - 11.50 0.4528 76mm 120mm 30966 3096829/64 - 11.51 0.4531 3 4-3/4 30970 3097115/32 - 11.91 0.4688 3 4-3/4 30990 30991- - 12.00 0.4724 76mm 120mm 30994 3099631/64 - 12.30 0.4844 3 4-3/4 31010 31011- - 12.50 0.4920 76mm 120mm 31014 310161/2 - 12.70 0.5000 3 4-3/4 31026 31028- - 12.90 0.5079 76mm 120mm 31029 31033- - 13.00 0.5118 76mm 120mm 31030 3103117/32 - 13.49 0.5313 3 4-3/4 31036 31032- - 13.50 0.5315 76mm 120mm 31041 31044- - 14.00 0.5512 76mm 120mm 31052 310569/16 - 14.29 0.5625 4 6 31034 31035- - 14.50 0.5709 100mm 150mm 31059 3106037/64 - 14.68 0.5781 4 6 31061 31064- - 15.00 0.5906 100mm 150mm 31062 3106319/32 - 15.08 0.5937 4 6 31038 3103939/64 - 15.47 0.6094 4 6 31040 31045- - 15.50 0.6102 100mm 150mm 31065 310985/8 - 15.88 0.6250 4 6 31042 31043- - 16.00 0.6299 100mm 150mm 31071 31072- - 16.50 0.6496 100mm 150mm 31080 3108121/32 - 16.67 0.6562 4 6 31046 31047- - 17.00 0.6693 100mm 150mm 31083 31084JOBBER %u2022 Designed for higher feed rate and chip evacuation%u2022 1180 four facet point angle%u2022 Right hand cut%u2022 Right hand spiralFLUTE OALJOBBERCarbide Drill
