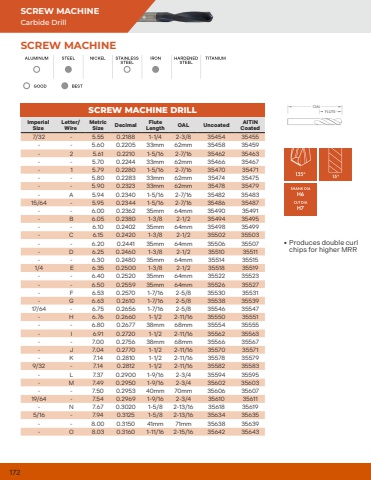

172 172SCREW MACHINECarbide DrillSCREW MACHINESCREW MACHINE DRILLImperial SizeLetter/WireMetric Size Decimal Flute Length OAL Uncoated AlTiN Coated7/32 - 5.55 0.2188 1-1/4 2-3/8 35454 35455- - 5.60 0.2205 33mm 62mm 35458 35459- 2 5.61 0.2210 1-5/16 2-7/16 35462 35463- - 5.70 0.2244 33mm 62mm 35466 35467- 1 5.79 0.2280 1-5/16 2-7/16 35470 35471- - 5.80 0.2283 33mm 62mm 35474 35475- - 5.90 0.2323 33mm 62mm 35478 35479- A 5.94 0.2340 1-5/16 2-7/16 35482 3548315/64 - 5.95 0.2344 1-5/16 2-7/16 35486 35487- - 6.00 0.2362 35mm 64mm 35490 35491- B 6.05 0.2380 1-3/8 2-1/2 35494 35495- - 6.10 0.2402 35mm 64mm 35498 35499- C 6.15 0.2420 1-3/8 2-1/2 35502 35503- - 6.20 0.2441 35mm 64mm 35506 35507- D 6.25 0.2460 1-3/8 2-1/2 35510 35511- - 6.30 0.2480 35mm 64mm 35514 355151/4 E 6.35 0.2500 1-3/8 2-1/2 35518 35519- - 6.40 0.2520 35mm 64mm 35522 35523- - 6.50 0.2559 35mm 64mm 35526 35527- F 6.53 0.2570 1-7/16 2-5/8 35530 35531- G 6.63 0.2610 1-7/16 2-5/8 35538 3553917/64 - 6.75 0.2656 1-7/16 2-5/8 35546 35547- H 6.76 0.2660 1-1/2 2-11/16 35550 35551- - 6.80 0.2677 38mm 68mm 35554 35555- I 6.91 0.2720 1-1/2 2-11/16 35562 35563- - 7.00 0.2756 38mm 68mm 35566 35567- J 7.04 0.2770 1-1/2 2-11/16 35570 35571- K 7.14 0.2810 1-1/2 2-11/16 35578 355799/32 - 7.14 0.2812 1-1/2 2-11/16 35582 35583- L 7.37 0.2900 1-9/16 2-3/4 35594 35595- M 7.49 0.2950 1-9/16 2-3/4 35602 35603- - 7.50 0.2953 40mm 70mm 35606 3560719/64 - 7.54 0.2969 1-9/16 2-3/4 35610 35611- N 7.67 0.3020 1-5/8 2-13/16 35618 356195/16 - 7.94 0.3125 1-5/8 2-13/16 35634 35635- - 8.00 0.3150 41mm 71mm 35638 35639- O 8.03 0.3160 1-11/16 2-15/16 35642 35643%u2022 Produces double curl chips for higher MRRFLUTE OAL
