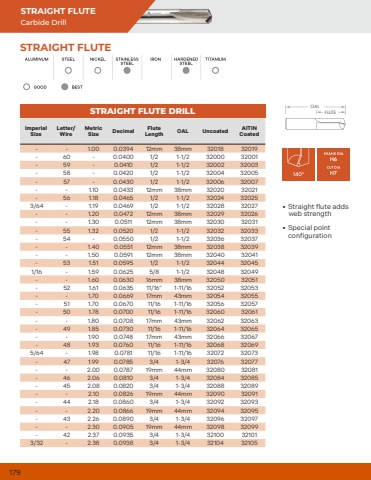

179STRAIGHT FLUTESTRAIGHT FLUTECarbide DrillSTRAIGHT FLUTE DRILLImperial SizeLetter/WireMetric Size Decimal Flute Length OAL Uncoated AlTiN Coated - - 1.00 0.0394 12mm 38mm 32018 32019- 60 - 0.0400 1/2 1-1/2 32000 32001- 59 - 0.0410 1/2 1-1/2 32002 32003- 58 - 0.0420 1/2 1-1/2 32004 32005- 57 - 0.0430 1/2 1-1/2 32006 32007- - 1.10 0.0433 12mm 38mm 32020 32021- 56 1.18 0.0465 1/2 1-1/2 32024 320253/64 - 1.19 0.0469 1/2 1-1/2 32028 32027- - 1.20 0.0472 12mm 38mm 32029 32026- - 1.30 0.0511 12mm 38mm 32030 32031- 55 1.32 0.0520 1/2 1-1/2 32032 32033- 54 - 0.0550 1/2 1-1/2 32036 32037- - 1.40 0.0551 12mm 38mm 32038 32039- - 1.50 0.0591 12mm 38mm 32040 32041- 53 1.51 0.0595 1/2 1-1/2 32044 320451/16 - 1.59 0.0625 5/8 1-1/2 32048 32049- - 1.60 0.0630 16mm 38mm 32050 32051- 52 1.61 0.0635 11/16\1-11/16 32052 32053- - 1.70 0.0669 17mm 43mm 32054 32055- 51 1.70 0.0670 11/16 1-11/16 32056 32057- 50 1.78 0.0700 11/16 1-11/16 32060 32061- - 1.80 0.0708 17mm 43mm 32062 32063- 49 1.85 0.0730 11/16 1-11/16 32064 32065- - 1.90 0.0748 17mm 43mm 32066 32067- 48 1.93 0.0760 11/16 1-11/16 32068 320695/64 - 1.98 0.0781 11/16 1-11/16 32072 32073- 47 1.99 0.0785 3/4 1-3/4 32076 32077- - 2.00 0.0787 19mm 44mm 32080 32081- 46 2.06 0.0810 3/4 1-3/4 32084 32085- 45 2.08 0.0820 3/4 1-3/4 32088 32089- - 2.10 0.0826 19mm 44mm 32090 32091- 44 2.18 0.0860 3/4 1-3/4 32092 32093- - 2.20 0.0866 19mm 44mm 32094 32095- 43 2.26 0.0890 3/4 1-3/4 32096 32097- - 2.30 0.0905 19mm 44mm 32098 32099- 42 2.37 0.0935 3/4 1-3/4 32100 321013/32 - 2.38 0.0938 3/4 1-3/4 32104 32105%u2022 Straight flute adds web strength %u2022 Special point configurationOALFLUTE
