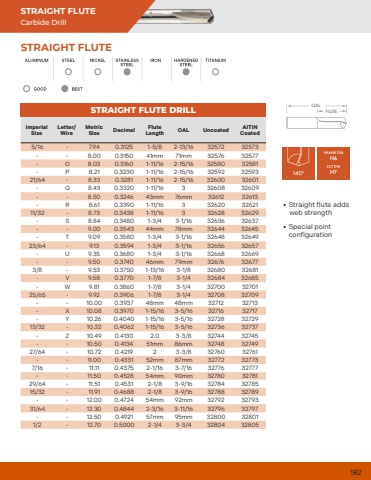

182STRAIGHT FLUTESTRAIGHT FLUTECarbide DrillSTRAIGHT FLUTE DRILLImperial SizeLetter/WireMetric Size Decimal Flute Length OAL Uncoated AlTiN Coated 5/16 - 7.94 0.3125 1-5/8 2-13/16 32572 32573- - 8.00 0.3150 41mm 71mm 32576 32577- O 8.03 0.3160 1-11/16 2-15/16 32580 32581- P 8.21 0.3230 1-11/16 2-15/16 32592 3259321/64 - 8.33 0.3281 1-11/16 2-15/16 32600 32601- Q 8.43 0.3320 1-11/16 3 32608 32609- - 8.50 0.3246 43mm 76mm 32612 32613- R 8.61 0.3390 1-11/16 3 32620 3262111/32 - 8.73 0.3438 1-11/16 3 32628 32629- S 8.84 0.3480 1-3/4 3-1/16 32636 32637- - 9.00 0.3543 44mm 78mm 32644 32645- T 9.09 0.3580 1-3/4 3-1/16 32648 3264923/64 - 9.13 0.3594 1-3/4 3-1/16 32656 32657- U 9.35 0.3680 1-3/4 3-1/16 32668 32669- - 9.50 0.3740 46mm 79mm 32676 326773/8 - 9.53 0.3750 1-13/16 3-1/8 32680 32681- V 9.58 0.3770 1-7/8 3-1/4 32684 32685- W 9.81 0.3860 1-7/8 3-1/4 32700 3270125/65 - 9.92 0.3906 1-7/8 3-1/4 32708 32709- - 10.00 0.3937 48mm 48mm 32712 32713- X 10.08 0.3970 1-15/16 3-5/16 32716 32717- Y 10.26 0.4040 1-15/16 3-5/16 32728 3272913/32 - 10.32 0.4062 1-15/16 3-5/16 32736 32737- Z 10.49 0.4130 2.0 3-3/8 32744 32745- - 10.50 0.4134 51mm 86mm 32748 3274927/64 - 10.72 0.4219 2 3-3/8 32760 32761- - 11.00 0.4331 52mm 87mm 32772 327737/16 - 11.11 0.4375 2-1/16 3-7/16 32776 32777- - 11.50 0.4528 54mm 90mm 32780 3278129/64 - 11.51 0.4531 2-1/8 3-9/16 32784 3278515/32 - 11.91 0.4688 2-1/8 3-9/16 32788 32789- - 12.00 0.4724 54mm 92mm 32792 3279331/64 - 12.30 0.4844 2-3/16 3-11/16 32796 32797- - 12.50 0.4921 57mm 95mm 32800 328011/2 - 12.70 0.5000 2-1/4 3-3/4 32804 32805OALFLUTE%u2022 Straight flute adds web strength %u2022 Special point configuration
