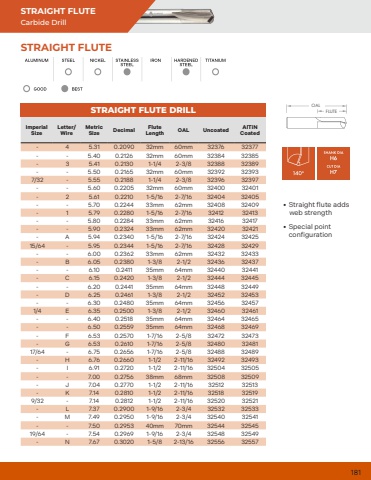

181 181STRAIGHT FLUTESTRAIGHT FLUTECarbide DrillSTRAIGHT FLUTE DRILLImperial SizeLetter/WireMetric Size Decimal Flute Length OAL Uncoated AlTiN Coated - 4 5.31 0.2090 32mm 60mm 32376 32377- - 5.40 0.2126 32mm 60mm 32384 32385- 3 5.41 0.2130 1-1/4 2-3/8 32388 32389- - 5.50 0.2165 32mm 60mm 32392 323937/32 - 5.55 0.2188 1-1/4 2-3/8 32396 32397- - 5.60 0.2205 32mm 60mm 32400 32401- 2 5.61 0.2210 1-5/16 2-7/16 32404 32405- - 5.70 0.2244 33mm 62mm 32408 32409- 1 5.79 0.2280 1-5/16 2-7/16 32412 32413- - 5.80 0.2284 33mm 62mm 32416 32417- - 5.90 0.2324 33mm 62mm 32420 32421- A 5.94 0.2340 1-5/16 2-7/16 32424 3242515/64 - 5.95 0.2344 1-5/16 2-7/16 32428 32429- - 6.00 0.2362 33mm 62mm 32432 32433- B 6.05 0.2380 1-3/8 2-1/2 32436 32437- - 6.10 0.2411 35mm 64mm 32440 32441- C 6.15 0.2420 1-3/8 2-1/2 32444 32445- - 6.20 0.2441 35mm 64mm 32448 32449- D 6.25 0.2461 1-3/8 2-1/2 32452 32453- - 6.30 0.2480 35mm 64mm 32456 324571/4 E 6.35 0.2500 1-3/8 2-1/2 32460 32461- - 6.40 0.2518 35mm 64mm 32464 32465- - 6.50 0.2559 35mm 64mm 32468 32469- F 6.53 0.2570 1-7/16 2-5/8 32472 32473- G 6.53 0.2610 1-7/16 2-5/8 32480 3248117/64 - 6.75 0.2656 1-7/16 2-5/8 32488 32489- H 6.76 0.2660 1-1/2 2-11/16 32492 32493- I 6.91 0.2720 1-1/2 2-11/16 32504 32505- - 7.00 0.2756 38mm 68mm 32508 32509- J 7.04 0.2770 1-1/2 2-11/16 32512 32513- K 7.14 0.2810 1-1/2 2-11/16 32518 325199/32 - 7.14 0.2812 1-1/2 2-11/16 32520 32521- L 7.37 0.2900 1-9/16 2-3/4 32532 32533- M 7.49 0.2950 1-9/16 2-3/4 32540 32541- - 7.50 0.2953 40mm 70mm 32544 3254519/64 - 7.54 0.2969 1-9/16 2-3/4 32548 32549- N 7.67 0.3020 1-5/8 2-13/16 32556 32557OALFLUTE%u2022 Straight flute adds web strength %u2022 Special point configuration
