Collection: Shape F | Burr

Collapsible content

CLICK HERE for Product Matrix

Click on the corresponding product SKU

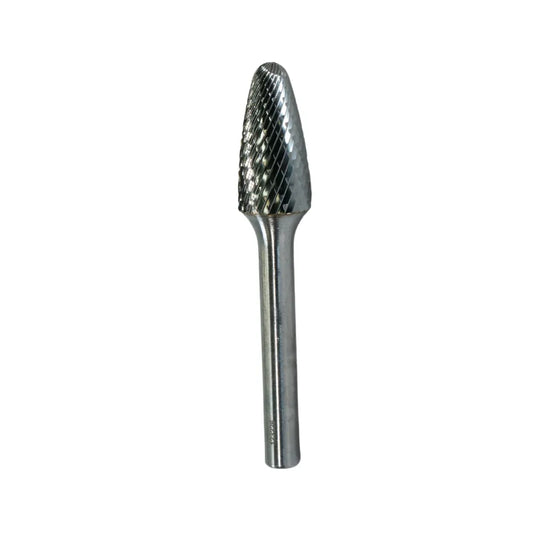

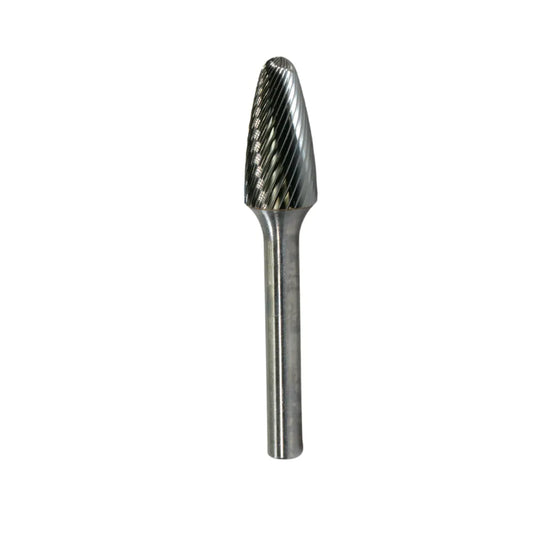

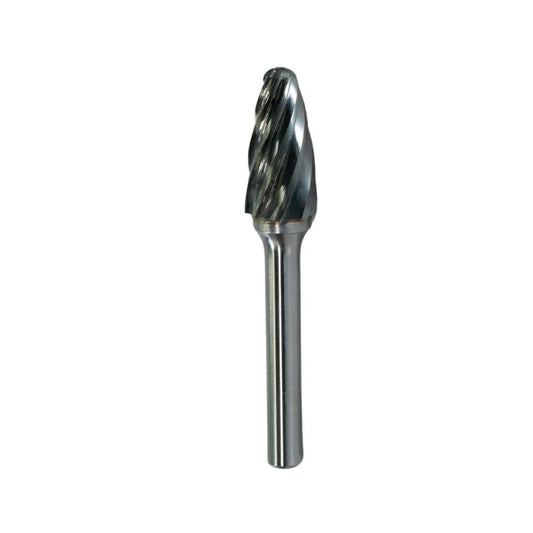

Burr Shape F - Tree Shape with Radius

1/8" Shank Diameter

Tool # Cut Dia LOC Shank Dia Included Angle Shank Type Single Cut Double Cut
SF-53 3/16 1/2 1/8 — C 10840 10841
SF-41 1/8 1/4 1/8 — A 10803 10807
SF-42 1/8 1/2 1/8 — A 10811 10815
SF-42L2 1/8 1/2 1/8 — A 10834 10826
SF-42L3 1/8 1/2 1/8 — A 10821 10822
SF-51 1/4 1/2 1/8 — C 10835 10839

Regular Length

Tool # Cut Dia LOC Shank Dia Included Angle Shank Type Single Cut Double Cut Aluma Cut NF

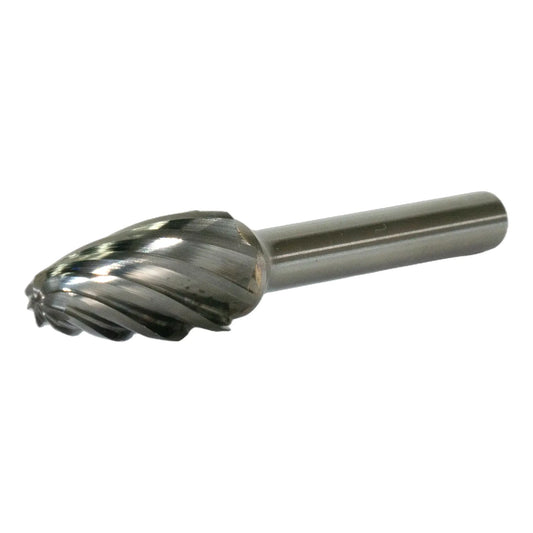

SF-1 1/4 5/8 1/4 — A 10843 10847 10915
SF-1A 1/4 1 1/4 — A 10846 10850 —
SF-11 1/8 1/2 1/4 — A 10819 10823 —
SF-3 3/8 3/4 1/4 — C 10851 10855 10919
SF-4 7/16 1 1/4 — C 10859 10863 —
SF-13 1/2 3/4 1/4 — C 10867 10871 —
SF-5 1/2 1 1/4 — C 10875 10879 10923
SF-6 5/8 1 1/4 — C 10883 10887 10927
SF-7 3/4 1 1/4 — C 10891 10895 10931
SF-14 3/4 1-1/4 — — — 10899 10903 —

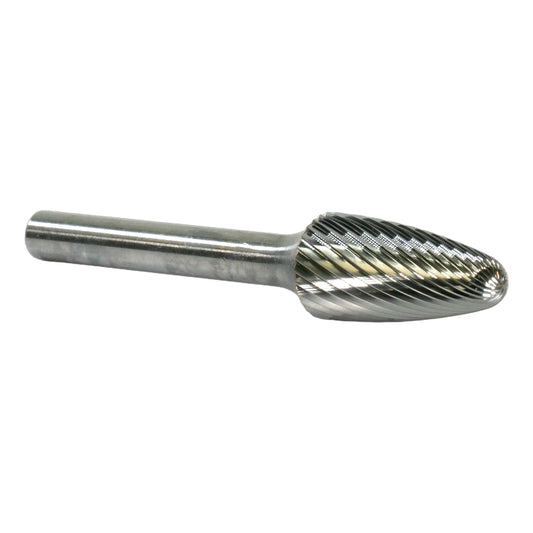

SF-15 3/4 1-1/2 — — — 10907 10911 —

Regular Length (continued)

Tool # Cut Dia LOC Shank Dia Single Cut Double Cut Aluma Cut NF

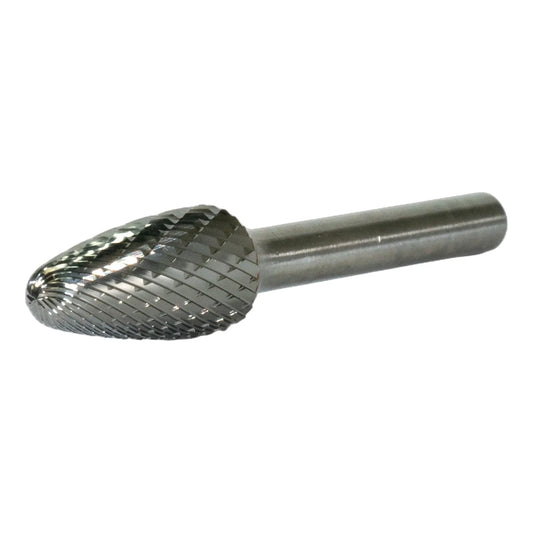

SF-1L6 1/4 1/2 1/4 10935 10939 —
SF-3L6 3/8 3/4 1/4 10943 10947 —
SF-5L6 1/2 1 1/4 10950 10949 10925
SF-7L6 3/4 1 1/4 10890 10893 —
