Milling Inserts

Milling Inserts



MILLING

Style ADKT

  • Chipbreaker for finishing
  • Single sided with chip control
  • For turning and boring
  • Screw on insert
Insert Style Dimensions Uncoated Grade Coated Grade
I.C. Width Corner Radius Thru Hole C550 EDP# CM14 EDP#
ADKT 1505 PDSR-MM 3/8 3/16 1/32 0.173 42796 42798
adkt style insert
MILLING

Style APKT

  • 85° parallelogram
  • For light cutting of steel and cast iron
Insert Style I.C. I.W. Radius Hole Size Uncoated Grade Coated Grade
C520 EDP# C550 EDP# CM02 EDP# CM14 EDP# X-Treme EDP#
APKT 1003 PDR-HM 0.441 0.264 0.020 0.110 42732 42734 42738 42736 42735
APKT 1505 PDR-HM 0.625 0.375 0.0315 0.175 42740 42742 42744 42746 42747
APKT 1604 PDR-HM 0.625 0.375 0.0315 0.175 42748 42750 42752 42754 42753
apkt style insert
MILLING

Style SEAN

  • Square 20° positive milling insert
  • For End milling and face milling
Insert Style ISO Designation Dimensions Uncoated Grade Coated Grade
I.C. Width Corner Flat C520 C550 CM14
SEAN-42 AFTN SEAN 12 03 AFTN 1/2 1/8 0.097 X 45° 42446 42446 42450
SEAN-43 AFTN SEAN 12 04 AFTN 1/2 3/16 0.097 X 45° 42451 42451 42455
SEAN-53 AFTN SEAN 15 04 AFTN 5/8 3/16 0.097 X 45° 42452 42452 42456
SEAN-42 AFN SEAN 12 03 AFN 1/2 1/8 0.097 X 45° 42457 42457 42459
SEAN-43 AFN SEAN 12 04 AFN 1/2 3/16 0.097 X 45° 42756 42756 42762
SEAN-53 AFN SEAN 15 04 AFN 5/8 3/16 0.097 X 45° 42764 42764 42770
sean style insert

Style CTA

  • For slotting, slab, or straddle milling
  • 87° Parallelogram
  • Fully ground
Insert Style I.C. I.W. Radius C520 EDP# C550 EDP# CM14 EDP#
CTA-2 0.355 5/32 1/64 42350 42352 42354
CTA-2 0.355 5/32 1/32 42356 42358 42360
CTA-2 0.355 5/32 3/32 42362 42364 42366
CTA-2 0.355 5/32 1/8 42368 42370 42372
CTA-4 0.460 3/16 1/32 42374 42376 42378
CTA-4 0.460 3/16 3/32 42380 42382 42384
CTA-4 0.460 3/16 1/8 42386 42388 42390
CTA-6 0.685 3/16 1/32 42392 42394 42396
CTA-6 0.685 3/16 3/32 42398 42400 42402
CTA-6 0.685 3/16 1/8 42404 42406 42408
CTA-8 0.750 3/16 1/32 42410 42412 42414
CTA-8 0.750 3/16 3/32 42416 42418 42420
CTA-8 0.750 3/16 1/8 42422 42424 42426
cta style insert

Style SPKN

Insert Style I.C. Width Corner Flat C520 EDP# C550 EDP# CM14 EDP#
SPKN-42 EDR 1/2 1/8 0.056 46580 46581 46582
SPKN-42 EDTR 1/2 1/8 0.056 46585 46584 46586
SPKN-43 EDR 1/2 3/16 0.056 46588 46589 46590
SPKN-53 EDR 5/8 3/16 0.056 46592 46593 46594
SPKN-53 EDTR 5/8 3/16 0.056 46596 46597 46598
spkn style insert

Style SEC

  • Square 20° positive milling insert
  • Clamp style insert
  • Single sided
  • For a variety of milling applications
Insert Style ISO Designation I.C. Width Corner Flat C520 EDP# C550 EDP# CM14 EDP#
SEC 422 SECN 12 03 08 1/2 1/8 1/32 42458 42460 42462
SEC 424 SECN 12 03 16 1/2 1/8 1/16 42464 42466 42468
SEC 533 SECN 15 04 12 5/8 3/16 3/64 42463 42465 42467
SEC 633 SECN 19 04 12 3/4 3/16 3/64 42469 42471 42473
SEC 634 SECN 19 04 16 3/4 3/16 1/16 42470 42472 42474

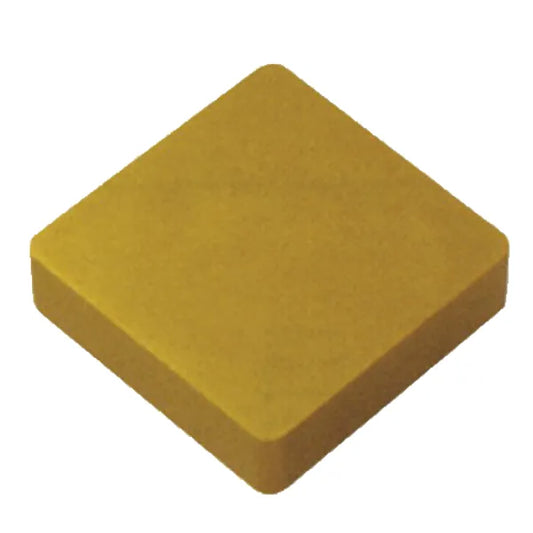

sec style insert

Style SEKN

Insert Style ISO Designation I.C. Width Corner Flat C520 EDP# C550 EDP# CM14 EDP#
SEKN-42AFN SEKN 12 03 AFN 1/2 1/8 3/32 X 45° 46500 46501 46502
SEKN-42AFTN SEKN 12 03 AFTN 1/2 1/8 3/32 X 45° 46504 46505 46506
SEKN-42AFSN SEKN 12 03 AFSN 1/2 1/8 3/32 X 45° 46508 46509 46510
SEKN-43AFN SEKN 12 04 AFN 1/2 3/16 3/32 X 45° 46512 46513 46514
SEKN-43AFTN SEKN 12 04 AFTN 1/2 3/16 3/32 X 45° 46516 46517 46518
SEKN-53AFN SEKN 15 04 AFN 5/8 3/16 1/8 X 45° 46520 46521 46522
SEKN-53AFTN SEKN 16 04 AFTN 5/8 3/16 1/8 X 45° 46524 46525 46526

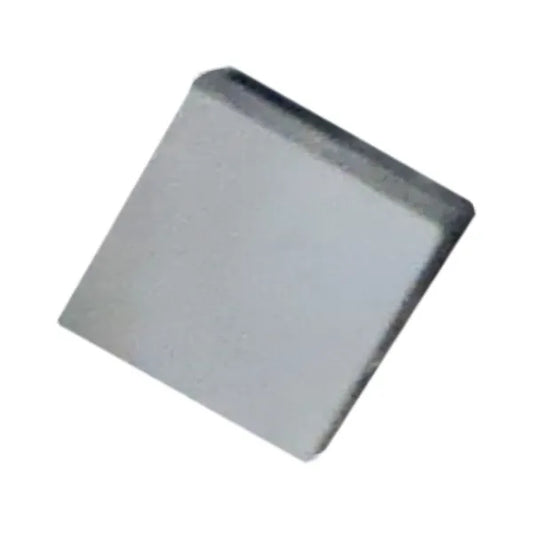

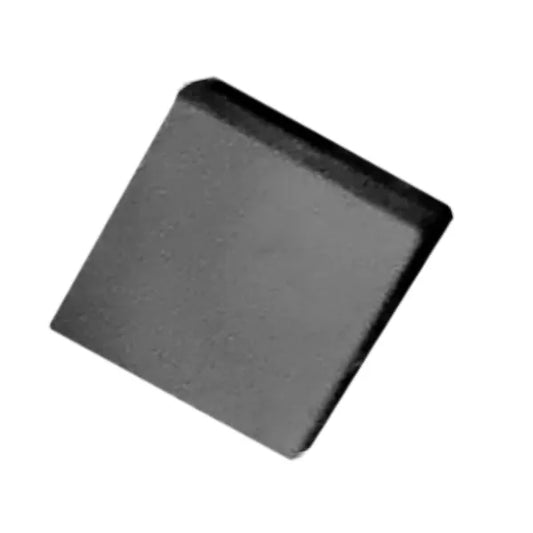

sekn style insert

Style SEKR

Insert Style ISO Designation I.C. Width Corner Flat C520 EDP# C550 EDP# CM02 EDP# CM14 EDP#
SEKR-42 AFTN SEKR 12 03 AFTN 1/2 1/8 0.097 X 45° 42772 42774 42776 42778
SEKR-43 AFTN SEKR 12 04 AFTN 1/2 3/16 0.097 X 45° 42780 42782 42784 42786
SEKR-53 AFTN SEKR 15 04 AFTN 5/8 3/16 0.097 X 45° 42788 42790 42792 42794

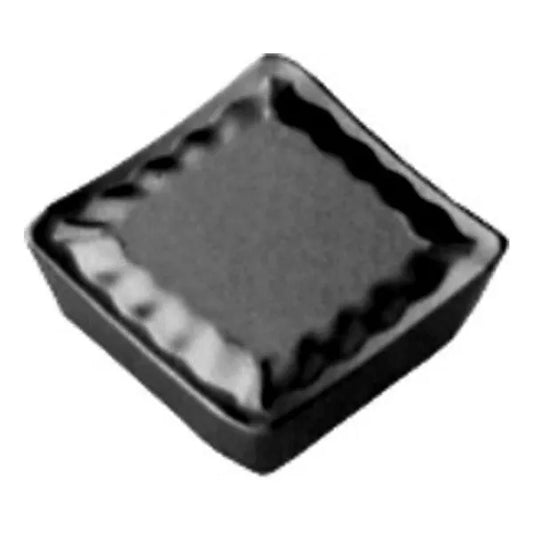

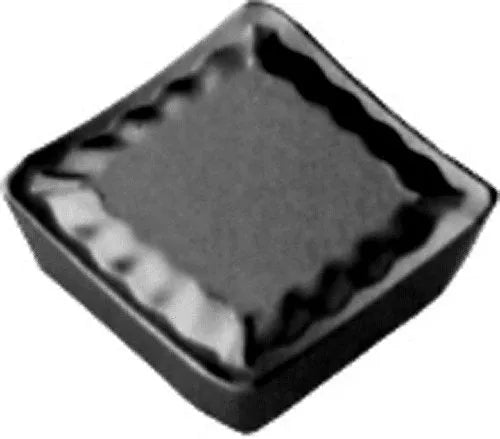

sekr style insert
