Turning Inserts

CCGT to CPMT

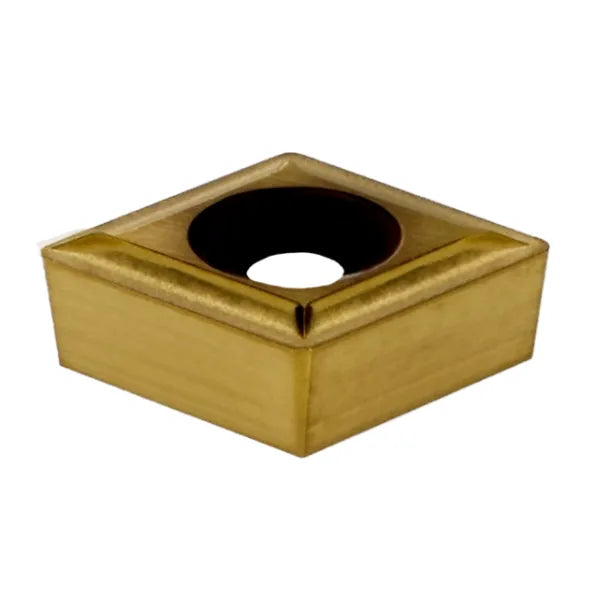

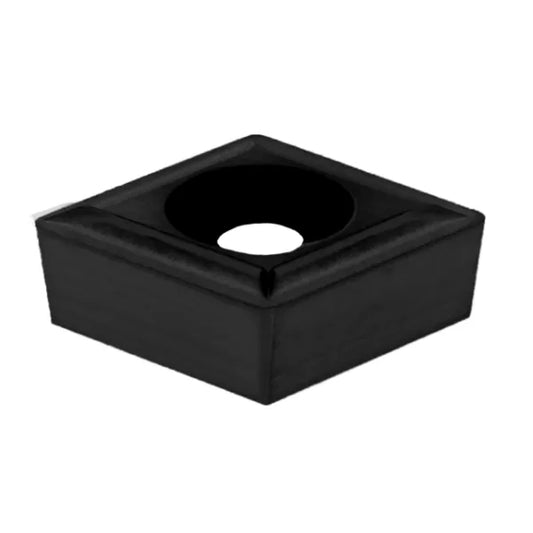

Style CCGT Insert

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM02 EDP# CM14 EDP# X-Treme EDP#
CCGT 21.50 CCGT 06 02 02 1/4 3/32 0.008 0.110 40008 40010 40012 40014 -
CCGT 21.51 CCGT 06 02 04 1/4 3/32 1/64 0.110 40016 40018 40020 40022 -
CCGT 21.52 CCGT 06 02 08 1/4 3/32 1/32 0.110 40024 40026 40028 40030 -
CCGT 32.50 CCGT 09 T3 02 3/8 5/32 0.008 0.173 40032 40034 40036 40038 40037
CCGT 32.51 CCGT 09 T3 04 3/8 5/32 1/64 0.173 40040 40042 40044 40046 -
CCGT 32.52 CCGT 09 T3 08 3/8 5/32 1/32 0.173 40048 40050 40052 40054 -
CCGT 431 CCGT 12 04 04 1/2 3/16 1/64 0.217 40056 40058 40060 40062 -
CCGT 432 CCGT 12 04 08 1/2 3/16 1/32 0.217 40064 40066 40068 40070 -

Style CCMT Insert

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM02 EDP# CM14 EDP# X-Treme EDP#
CCMT 21.50 CCMT 06 02 02 1/4 3/32 0.008 0.110 40088 40092 40094 40096 40095
CCMT 21.51 CCMT 06 02 04 1/4 3/32 1/64 0.110 40100 40104 40106 40108 -
CCMT 21.52 CCMT 06 02 08 1/4 3/32 1/32 0.110 40112 40116 40118 40120 40119
CCMT 32.50 CCMT 09 T3 02 3/8 5/32 0.008 0.173 40121 40122 40123 40125 -
CCMT 32.51 CCMT 09 T3 04 3/8 5/32 1/64 0.173 40124 40128 40130 40132 40131
CCMT 32.52 CCMT 09 T3 08 3/8 5/32 1/32 0.173 40136 40140 40142 40144 40143
CCMT 431 CCMT 12 04 04 1/2 3/16 1/64 0.217 40146 40148 40149 40150 -
CCMT 432 CCMT 12 04 08 1/2 3/16 1/32 0.217 40152 40154 40155 40156 40153

Style CNMA Insert

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP # C550 EDP # CM14 EDP #
CNMA 431 CNMA 12 04 04 1/2 3/16 1/64 0.203 44100 44104 44108
CNMA 432 CNMA 12 04 08 1/2 3/16 1/32 0.203 44112 44116 44120
CNMA 433 CNMA 12 04 12 1/2 3/16 3/64 0.203 44124 44128 44132
CNMA 542 CNMA 16 06 08 5/8 1/4 1/32 0.250 44109 44110 44111
CNMA 543 CNMA 16 06 12 5/8 1/4 3/64 0.250 44121 44122 44123
CNMA 544 CNMA 16 06 16 5/8 1/4 1/16 0.250 44133 44134 44135
CNMA 642 CNMA 19 06 08 3/4 1/4 1/32 0.312 44136 44140 44144
CNMA 643 CNMA 19 06 12 3/4 1/4 3/64 0.312 44148 44152 44156
CNMA 644 CNMA 19 06 16 3/4 1/4 1/16 0.312 44157 44158 44159

Style CNMG Insert

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM02 EDP# CM14 EDP# X-Treme EDP#
CNMG 321 CNMG 09 03 04 1/2 1/8 1/64 0.150 - 40197 - 40159 -
CNMG 431 CNMG 12 04 04 1/2 3/16 1/64 0.203 40160 40164 40166 40168 40169
CNMG 432 CNMG 12 04 08 1/2 3/16 1/32 0.203 40172 40176 40178 40180 40179
CNMG 433 CNMG 12 04 12 1/2 3/16 3/64 0.203 40184 40188 40190 40192 -
CNMG 434 CNMG 12 04 16 1/2 3/16 1/16 0.203 40196 40200 40202 40204 40205
CNMG 542 CNMG 16 06 08 5/8 1/4 1/32 0.250 40208 40212 40214 40216 -
CNMG 543 CNMG 16 06 12 5/8 1/4 3/64 0.250 40220 40224 40226 40228 -
CNMG 544 CNMG 16 06 16 5/8 1/4 1/16 0.250 40229 40230 40231 40233 -
CNMG 642 CNMG 19 06 08 3/4 1/4 1/32 0.312 40232 40236 40238 40240 -
CNMG 643 CNMG 19 06 12 3/4 1/4 3/64 0.312 40244 40248 40250 40252 -
CNMG 644 CNMG 19 06 16 3/4 1/4 1/16 0.312 40256 40260 40262 40264 -

Style CNMM Insert

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM02 EDP# CM14 EDP#
CNMM 432 CNMM 12 04 08 1/2 3/16 1/32 0.203 44288 44292 44294 44296
CNMM 433 CNMM 12 04 12 1/2 3/16 3/64 0.203 44300 44304 44306 44308
CNMM 642 CNMM 19 06 08 3/4 1/4 1/32 0.312 44312 44316 44318 44320
CNMM 643 CNMM 19 06 12 3/4 1/4 3/64 0.312 44324 44328 44330 44332

Style CNMP Insert

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM02 EDP# CM14 EDP# X-Treme EDP#
CNMP 431 CNMP 12 04 04 1/2 3/16 1/64 0.203 44650 44652 44654 44656 -
CNMP 432 CNMP 12 04 08 1/2 3/16 1/32 0.203 44658 44660 44662 44664 44661
CNMP 433 CNMP 12 04 12 1/2 3/16 3/64 0.203 44666 44668 44670 44672 -
CNMP 642 CNMP 19 06 08 3/4 1/4 1/32 0.312 44674 44676 44678 44680 -
CNMP 643 CNMP 19 06 12 3/4 1/4 3/64 0.312 44682 44684 44686 44688 -

Style CPGM Insert

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM02 EDP# CM14 EDP#
CPGM 21.50 CPGM 06 02 02 1/4 3/32 0.008 0.110 40316 40320 40322 40324
CPGM 21.51 CPGM 06 02 04 1/4 3/32 1/64 0.110 40328 40332 40334 40336
CPGM 21.52 CPGM 06 02 08 1/4 3/32 1/32 0.110 40340 40344 40346 40348
CPGM 32.51 CPGM 09 T3 04 3/8 3/8 1/64 0.173 40352 40356 40358 40360

Style CPGT Insert

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM02 EDP# CM14 EDP#
CPGT 21.50 CPGT 06 02 02 1/4 3/32 0.008 0.110 44336 44340 44342 44344
CPGT 21.51 CPGT 06 02 04 1/4 3/32 1/64 0.110 44348 44352 44354 44356
CPGT 21.52 CPGT 06 02 08 1/4 3/32 1/32 0.110 44360 44364 44366 44368
CPGT 32.51 CPGT 09 T3 04 3/8 3/8 1/64 0.173 44372 44376 44378 44380
CPGT 32.52 CPGT 09 T3 08 3/8 3/8 1/32 0.173 44384 44388 44390 44392

Style CPMT Insert

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM02 EDP# CM14 EDP#
CPMT 21.505 CPMT 06 02 02 1/4 3/32 0.008 0.110 40376 40380 40382 40384
CPMT 21.51 CPMT 06 02 04 1/4 3/32 1/64 0.110 40388 40392 40394 40396
CPMT 32.505 CPMT 09 T3 02 3/8 5/32 0.008 0.173 40400 40404 40406 40408
CPMT 32.51 CPMT 09 T3 04 3/8 5/32 1/64 0.173 40412 40416 40418 40420
CPMT 32.52 CPMT 09 T3 08 3/8 5/32 1/32 0.173 40424 40428 40430 40432

DCMT to RPG

Style DCMT

  • Chipbreaker type CM-medium
  • Screw-on style insert
  • 7° Relief angle
  • 55° Diamond with chipbreaker
  • Single sided insert with molded chipbreaker
  • For semi-finishing and finishing cuts
  • Feed range .003 To .012 IPR/0.1-0.3 MM/REV
Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM02 EDP# CM14 EDP# X-Treme EDP#
DCMT 21.51 DCMT 070204 1/4 3/32 1/64 0.110 40436 40440 40442 40444 -
DCMT 21.52 DCMT 070208 1/4 3/32 1/32 0.110 40448 40452 40454 40456 40455
DCMT 32.51 DCMT 11T304 3/8 5/32 1/64 0.173 40460 40464 40466 40468 -
DCMT 32.52 DCMT 11T308 3/8 5/32 1/32 0.173 40472 40476 40478 40480 40477
DCMT 431 DCMT 150404 1/2 3/16 1/64 0.203 40467 40469 40470 40471 -
DCMT 432 DCMT 150408 1/2 3/16 1/32 0.203 40479 40481 40482 40483 -

Style DNMG

  • Combo pin and clamp insert
  • 0° Relief angle
  • 55° Diamond with chipbreaker
  • Double sided for medium to heavy cuts
  • Used in a wide range of materials and applications
Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM02 EDP# CM14 EDP# X-Treme EDP#
DNMG 331 DNMG 16 04 04 3/8 3/16 1/64 0.150 40497 - 40498 - -
DNMG 431 DNMG 15 04 04 1/2 3/16 1/64 0.203 40484 40488 40490 40492 40495
DNMG 432 DNMG 15 04 08 1/2 3/16 1/32 0.203 40496 40500 40502 40504 40505
DNMG 433 DNMG 15 04 12 1/2 3/16 3/64 0.203 40508 40512 40510 40516 40517
DNMG 441 DNMG 15 06 04 1/2 1/4 1/64 0.203 - - - 40518 -
DNMG 442 DNMG 15 06 08 1/2 1/4 1/32 0.203 - - - 40519 -
DNMG 542 DNMG 19 06 08 5/8 1/4 1/32 0.250 40520 40524 40526 40528 40527
DNMG 543 DNMG 19 06 12 5/8 1/4 3/64 0.250 40532 40536 40538 40540 -

Style DNMP

  • Screw-on style insert
  • 55° Relief angle diamond
  • 5° Positive cutting action for semi-finishing and finishing
  • Low cutting force for machining soft materials, alloys, and stainless steel
  • Feed range 0.2-0.5MM/MIN
Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM14 EDP#
DNMP 431 DNMP 15 04 04 1/2 3/16 1/64 0.203 44690 44692 44696
DNMP 432 DNMP 15 04 08 1/2 3/16 1/32 0.203 44698 44700 44704

Style KNUX

  • 55° Parallelogram
  • Clamp on insert
  • 0° Relief angle
  • 12° Positive cutting action
Insert Style I.C. Width Corner Radius C520 EDP# C550 EDP# CM14 EDP#
Right Hand
KNUX 160405 R11 .188 .020 .086 X 12° 44418 70560 44420
KNUX 160410 R11 .188 .040 .086 X 12° - 70576 44424
Left Hand
KNUX 160405 L11 .188 .020 .086 X 12° 44427 70572 44428
KNUX 160410 L11 .188 .040 .086 X 12° 44423 70564 44432

Style RNG Round Clamp-On Insert

Insert Style ISO Designation I.C. Width C520 EDP# C550 EDP# CM14 EDP# X-Treme EDP#
RNG 32 RNGN 09 03 00 3/8 1/8 44826 44828 44832 -
RNG 42 RNGN 12 03 00 1/2 1/8 44834 44836 44840 44841
RNG 43 RNGN 12 04 00 1/2 3/16 44842 44844 44848 -
RNG 63 RNGN 19 04 00 3/4 3/4 44850 44852 44856 -

Style RCMT

Insert Style ISO Designation I.C. Width Thru Hole C520 EDP# C550 EDP# CM14 EDP# X-Treme EDP#
RCMT 325 RCMT 32.50 3/8 5/32 0.173 44972 44976 44980 44981

Style RNMA

  • For turning and facing
  • 0° Relief angle
Insert Style ISO Designation I.C. Width Thru Hole C520 EDP# C550 EDP# CM14 EDP#
RNMA 32 RNMA 09 03 00 3/8 1/8 0.150 44794 44796 44800
RNMA 43 RNMA 12 04 00 1/2 3/16 0.203 44802 44804 44808
RNMA 54 RNMA 15 06 00 5/8 1/4 0.250 44810 44812 44816
RNMA 64 RNMA 19 06 00 3/4 3/16 0.313 44818 44820 44824
RNMA 84 RNMA 2506 00 1" 1/4 0.359 44821 44825 44822
RNMA 86 RNMA 2509 00 1" 3/8 0.359 44817 44819 44823

Style RNMG

  • For turning and facing
  • 0° Relief angle
  • Round clamp-on insert
Insert Style ISO Designation I.C. Width Thru Hole C520 EDP# C550 EDP# CM14 EDP# X-Treme EDP#
RNMG 32 RNMG 09 03 00 3/8 1/8 0.150 44858 44860 44864 -
RNMG 43 RNMG 12 04 00 1/2 3/16 0.203 44866 44868 44872 44873
RNMG 54 RNMG 15 06 00 5/8 1/4 0.250 44874 44876 44880 -
RNMG 64 RNMG 19 06 00 3/4 1/4 0.312 44882 44884 44888 -
RNMG 84 RNMG 2506 00 1" 1/4 0.359 44881 44883 44885 -
RNMG 86 RNMG 2509 00 1" 3/8 0.359 44886 44887 44889 -

Style RPG

  • For turning and facing
  • 11° Relief angle
  • Round clamp-on insert
Insert Style ISO Designation I.C. Width C520 EDP# C550 EDP# CM14 EDP#
RPG 32 RPGN 09 03 00 3/8 1/8 44890 44892 44896
RPG 42 RPGN 12 03 00 1/2 1/8 44898 44900 44904
RPG 43 RPGN 12 04 00 1/2 3/16 44906 44908 44912
RPG 54 RPGN 15 06 00 5/8 1/4 44899 44901 44905
RPG 64 RPGN 19 06 00 3/4 1/4 44907 44909 44910

SCMT to SPU

Style SCMT

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM14 EDP# X-Treme EDP#
SCMT 32.51 SCMT 09 T3 04 3/8 5/32 1/64 0.173 40544 40548 40550 40552
SCMT 32.52 SCMT 09 T3 08 3/8 5/32 1/32 0.173 40556 40560 40562 40564
SCMT 431 SCMT 12 04 04 1/2 3/16 1/64 0.216 40568 40572 40574 40576
SCMT 432 SCMT 12 04 08 1/2 3/16 1/32 0.216 40580 40584 40586 40588

Style SNG

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM14 EDP# X-Treme EDP#
SNG 322 SNGN 09 03 08 3/8 1/8 1/32 - 44913 - - -
SNG 421 SNGN 12 03 04 1/2 1/8 0.016 - 44914 44916 44920 -
SNG 422 SNGN 12 03 08 1/2 1/8 0.031 - 44922 44924 44928 -
SNG 432 SNGN 12 04 08 1/2 3/16 1/32 - - 44927 44929 -
SNG 433 SNGN 12 04 12 1/2 3/16 0.047 44937 44930 44932 44936 44937
SNG 434 SNGN 12 04 16 1/2 3/16 0.063 - 44938 44940 44944 -
SNG 632 SNGN 19 04 08 3/4 3/16 0.031 - 44946 44948 44952 -
SNG 633 SNGN 19 04 12 3/4 3/16 0.047 - 44954 44956 44960 -
SNG 634 SNGN 19 04 16 3/4 3/16 0.063 - 44962 44964 44968 -

Style SNMG

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM02 EDP# CM14 EDP# X-Treme EDP#
SNMG 321 SNMG 09 03 04 3/8 1/8 1/64 0.150 40589 40590 - 40591 -
SNMG 322 SNMG 09 03 08 3/8 1/8 1/32 0.150 40592 40596 - 40600 -
SNMG 323 SNMG 16 03 12 3/8 1/8 3/64 0.150 40601 40602 - - -
SNMG 333 SNMG 09 04 12 3/8 3/16 3/64 0.150 40605 40606 - 40607 -
SNMG 431 SNMG 12 04 04 1/2 3/16 1/64 0.203 40604 40608 - 40612 -
SNMG 432 SNMG 12 04 08 1/2 3/16 1/32 0.203 40616 40620 40617 40624 40627
SNMG 433 SNMG 12 04 12 1/2 3/16 3/64 0.203 40628 40632 - 40636 -
SNMG 434 SNMG 12 04 16 1/2 3/16 3/64 0.203 40640 40644 - 40648 -
SNMG 542 SNMG 15 06 08 5/8 1/4 5/32 0.250 40652 40656 - 40660 -
SNMG 543 SNMG 15 06 12 5/8 1/4 3/64 0.250 40664 40668 - 40672 40669
SNMG 544 SNMG 15 06 16 5/8 1/4 1/16 0.250 40641 40642 - 40643 -
SNMG 642 SNMG 19 06 08 3/4 1/4 1/32 0.312 40653 40654 - 40655 -
SNMG 643 SNMG 19 06 12 3/4 1/4 3/64 0.312 40657 40658 - 40659 40663
SNMG 644 SNMG 19 06 16 3/4 1/4 1/16 0.312 40673 40674 40671 40675 -

Style SDEB

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM02 EDP# CM14 EDP#
SDEB 21.51 SDEB 06 02 04 1/4 1/8 1/64 0.143 46432 46434 46436 46438

Style SDEH

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM14 EDP#
SDEH 2.522 SDEH 07 03 08 5/16 1/8 1/32 0.115 46441 46443 46447

Style SNMA

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM14 EDP#
SNMA 322 SNMA 09 03 08 3/8 1/8 1/32 0.150 - 42498 -
SNMA 432 SNMA 12 04 08 1/2 3/16 1/32 0.203 42500 42502 42506
SNMA 433 SNMA 12 04 12 1/2 3/16 3/64 0.203 42508 42510 42514
SNMA 434 SNMA 12 04 16 1/2 3/16 3/64 0.203 42516 42518 42522
SNMA 542 SNMA 15 06 08 5/8 1/4 5/32 0.250 42524 42526 42530
SNMA 543 SNMA 15 06 12 5/8 1/4 3/64 0.250 42532 42534 42538
SNMA 544 SNMA 15 06 16 5/8 1/4 1/16 0.312 42540 42542 42546
SNMA 643 SNMA 19 06 12 3/4 1/4 3/64 0.312 42548 42550 42554
SNMA 644 SNMA 19 06 16 3/4 1/4 1/16 0.312 42556 42558 42562

Style SNU

Insert Style ISO Designation I.C. Width Corner Radius C520 EDP# C550 EDP# CM14 EDP#
SNU 422 SNUN 12 03 08 1/2 1/8 1/32 40677 40678 40679
SNU 432 SNUN 12 04 08 1/2 1/8 1/32 40681 40682 40683
SNU 433 SNUN 12 04 12 1/2 3/16 3/64 40676 40680 40684
SNU 632 SNUN 19 04 08 3/4 3/16 1/32 40685 40686 40687
SNU 633 SNUN 19 04 12 3/4 3/16 3/64 40688 40692 40696
SNU 634 SNUN 19 04 16 3/4 3/16 1/16 40697 40698 40699
SNU 644 SNUN 19 06 16 3/4 1/4 1/16 - 40701 40702

Style SPEB

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM14 EDP#
SPEB 222 SPEB 06 03 08 1/4 1/8 1/32 0.115 - - 46407
SPEB 322 SPEB 09 03 08 3/8 1/8 1/32 0.207 46410 46412 46416
SPEB 422 SPEB 12 03 08 1/2 1/8 1/32 0.178 - 46420 46425

Style SPEH

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM02 EDP# CM14 EDP#
SPEH 222 SPEH 06 03 08 1/4 1/8 1/32 0.115 46459 46461 46463 46465
SPEH 2.522 SPEH 07 03 08 5/16 1/8 1/32 0.115 46450 46452 46454 46456
SPEH 322 SPEH 09 03 08 3/8 1/8 1/32 0.156 46468 46470 46472 46474
SPEH 332 SPEH 09 04 08 3/8 3/16 1/32 0.150 46477 46479 46481 46483
SPEH 422 SPEH 12 03 08 1/2 1/8 1/32 0.178 46419 46421 46423 46427
SPEH 432 SPEH 12 04 08 1/2 3/16 1/32 0.215 46485 46487 46489 46491
SPEH 433 SPEH 12 04 12 1/2 3/16 3/64 0.215 46493 46495 46497 46498

Style SPGH

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM14 EDP#
SPGH 322 SPGH 09 03 08 3/8 1/8 1/32 0.156 40853 40854 40855
SPGH 432 SPGH 12 04 08 1/2 3/16 1/32 0.215 40865 40866 40867
SPGH 433 SPGH 12 04 12 1/2 3/16 3/64 0.175 40856 40860 40864

Style SPMR

Insert Style ISO Designation I.C. Width Corner Radius C520 EDP# C550 EDP# CM14 EDP#
SPMR 321 SPMR 09 03 04 3/8 1/8 1/64 44436 44440 44444
SPMR 322 SPMR 09 03 08 3/8 1/8 1/32 44448 44452 44456
SPMR 421 SPMR 12 03 04 1/2 1/8 1/64 44460 44464 44468
SPMR 422 SPMR 12 03 08 1/2 1/8 1/32 44472 44476 44480
SPMR 423 SPMR 12 03 12 1/2 1/8 3/64 - 44482 44481

Style SPMT

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM02 EDP# CM14 EDP#
SPMT 32.51 SPMT 09 T3 04 3/8 5/32 1/64 0.173 42564 42566 42568 42570
SPMT 32.52 SPMT 09 T3 08 3/8 5/32 1/32 0.173 42572 42574 42576 42578
SPMT 431 SPMT 12 04 04 1/2 3/16 1/64 0.216 42580 42582 42584 42586
SPMT 432 SPMT 12 04 08 1/2 3/16 1/32 0.216 42588 42590 42592 42594

Style SPU

Insert Style ISO Designation I.C. Width Corner Radius C520 EDP# C550 EDP# CM14 EDP# X-Treme EDP#
SPU 422 SPUN 12 03 08 1/2 1/8 1/32 40868 40872 40876 40875
SPU 423 SPUN 12 03 12 1/2 1/8 3/64 40869 40870 40871 -
SPU 432 SPUN 12 04 08 1/2 3/16 1/32 40877 40878 40879 40882
SPU 433 SPUN 12 04 12 1/2 3/16 3/64 - 40883 40881 -
SPU 533 SPUN 15 04 12 5/8 3/16 3/64 40886 40887 40885 -
SPU 632 SPUN 19 04 08 3/4 3/16 1/32 40880 40884 40888 -
SPU 633 SPUN 19 04 12 3/4 3/16 3/64 40892 40896 40900 40897
SPU 634 SPUN 19 04 16 3/4 3/16 1/16 40901 40899 40902 -

TCGT to TT

Style TCGT

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM02 EDP# CM14 EDP# X-Treme EDP#
TCGT 21.51 TCGT 11 02 04 1/4 3/32 1/64 0.110 42319 42321 42323 42325 -
TCGT 21.52 TCGT 11 02 08 1/4 3/32 1/32 0.110 42327 42329 42331 42333 40937
TCGT 321 TCGT 16 03 04 3/8 1/8 1/64 0.173 42302 42304 42306 42308 -
TCGT 322 TCGT 16 06 08 3/8 1/8 1/32 0.173 42311 42313 42315 42317 -
TCGT 32.51 TCGT 16 T3 04 3/8 5/32 1/64 0.173 42335 42337 42339 42341 -

Style TCMT

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM02 EDP# CM14 EDP# X-Treme EDP#
TCMT 21.505 TCMT 11 02 02 1/4 3/32 0.008 0.110 40905 40906 40922 40924 -
TCMT 21.51 TCMT 11 02 04 1/4 3/32 1/64 0.110 40927 40931 40933 40935 40929
TCMT 21.52 TCMT 11 02 08 1/4 3/32 1/32 0.110 40928 40932 40934 40936 40937
TCMT 32.505 TCMT 16 T3 02 3/8 5/32 0.008 0.173 40940 40944 40946 40948 -
TCMT 32.51 TCMT 16 T3 04 3/8 5/32 1/64 0.173 40952 40956 40958 40960 40963
TCMT 32.52 TCMT 16 T3 08 3/8 5/32 1/32 0.173 40953 40957 40959 40961 40962
TCMT 431 TCMT 22 04 04 1/2 3/16 1/64 0.216 40965 40966 40967 40969 -
TCMT 432 TCMT 22 04 08 1/2 3/16 1/32 0.216 40970 40971 40973 40974 40914

Style TNMG

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM02 EDP# CM14 EDP# X-Treme EDP#
TNMG 221 TNMG 11 03 04 1/4 1/8 1/64 0.093 40964 40968 - 40972 -
TNMG 222 TNMG 11 03 08 1/4 1/8 1/32 0.093 40976 40980 - 40984 -
TNMG 321 TNMG 16 03 04 3/8 1/8 1/64 0.150 40988 40992 - 40996 -
TNMG 322 TNMG 16 03 08 3/8 1/8 1/32 0.150 41000 41004 41007 41008 41006
TNMG 323 TNMG 16 03 12 3/8 1/8 3/64 0.150 41012 41016 - 41020 -
TNMG 324 TNMG 16 03 16 3/8 1/8 1/16 0.150 41024 41028 - 41032 -
TNMG 331 TNMG 16 04 04 3/8 3/16 1/64 0.150 41036 41040 - 41044 41037
TNMG 332 TNMG 16 04 08 3/8 3/16 1/32 0.150 41048 41052 - 41056 41057
TNMG 333 TNMG 16 04 12 3/8 3/16 3/64 0.150 41060 41064 - 41068 -
TNMG 431 TNMG 22 04 04 1/2 3/16 1/64 0.203 41072 41076 - 41080 41083
TNMG 432 TNMG 22 04 08 1/2 3/16 1/32 0.203 41084 41088 - 41092 41094
TNMG 433 TNMG 22 04 12 1/2 3/16 3/64 0.203 41096 41100 - 41104 -
TNMG 434 TNMG 22 04 16 1/2 3/16 1/16 0.203 41108 41112 - 41116 -
TNMG 542 TNMG 27 06 08 5/8 1/4 1/32 0.250 41120 41124 - 41128 41129
TNMG 543 TNMG 27 06 12 5/8 1/4 3/64 0.250 41132 41136 - 41140 -
TNMG 544 TNMG 27 06 16 5/8 1/4 1/16 0.250 41144 41148 41154 41152 -
TNMG 666 TNMG 33 09 24 3/4 3/8 3/32 0.312 41156 41160 - 41164 -

Style TNG

Insert Style I.C. Width Corner Radius C520 EDP# C550 EDP# CM14 EDP#
TNG 221 1/4 1/8 1/64 42104 42108 -
TNG 222 1/4 1/8 1/32 42113 42114 42115
TNG 322 3/8 1/8 1/32 42116 42120 42124
TNG 544 5/8 1/4 1/16 42184 42188 -

Style TNMP

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM02 EDP# CM14 EDP#
TNMP 321 TNMP 16 03 04 3/8 1/8 1/64 0.150 42596 42598 - 42602
TNMP 322 TNMP 16 03 08 3/8 1/8 1/32 0.150 42604 42606 42605 42610
TNMP 323 TNMP 16 03 12 3/8 1/8 3/64 0.150 42612 42614 - 42618
TNMP 324 TNMP 16 03 16 3/8 1/8 1/16 0.150 42620 42622 - 42626
TNMP 331 TNMP 16 04 04 3/8 3/16 1/64 0.150 42628 42630 - 42634
TNMP 332 TNMP 16 04 08 3/8 3/16 1/32 0.150 42636 42638 - 42642
TNMP 333 TNMP 16 04 12 3/8 3/16 3/64 0.150 42644 42646 - 42650
TNMP 431 TNMP 22 04 04 1/2 3/16 1/64 0.203 42652 42654 - 42658
TNMP 432 TNMP 22 04 08 1/2 3/16 1/32 0.203 42660 42662 - 42666
TNMP 433 TNMP 22 04 12 1/2 3/16 3/64 0.203 42668 42670 - 42674
TNMP 434 TNMP 22 04 16 1/2 3/16 1/16 0.203 42676 42678 - 42682
TNMP 542 TNMP 27 06 08 5/8 1/4 1/32 0.250 42684 42686 - 42690
TNMP 543 TNMP 27 06 12 5/8 1/4 3/64 0.250 42692 42694 - 42698
TNMP 544 TNMP 27 06 16 5/8 1/4 1/16 0.250 42700 42702 - 42706

Style TPEE

Insert Style ISO Designation I.C. Width Corner Radius C520 EDP# C550 EDP# CM14 EDP#
TPEE 730 TPEE 09 02 02 7/32 3/32 0.008 41168 41172 41176
TPEE 731 TPEE 09 02 04 7/32 3/32 1/64 41180 41184 41188

Style TPG

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM02 EDP# CM14 EDP# X-Treme EDP#
TPG 220 TPGN 11 03 01 1/4 1/8 0.004 - 41192 41196 - 41200 -
TPG 221 TPGN 11 03 04 1/4 1/8 1/64 - 41204 41208 - 41212 41213
TPG 222 TPGN 11 03 08 1/4 1/8 1/32 - 41216 41220 - 41224 -
TPG 320 TPGN 16 03 01 3/8 1/8 0.004 - 41228 41232 - 41236 -
TPG 321 TPGN 16 03 04 3/8 1/8 1/64 - 41240 41244 41245 41248 41249
TPG 322 TPGN 16 03 08 3/8 1/8 1/32 - 41252 41256 41261 41260 41262
TPG 323 TPGN 16 03 12 3/8 1/8 3/64 - 41264 41268 41265 41272 -
TPG 324 TPGN 16 04 16 3/8 1/8 1/16 - 41276 41280 41277 41284 -
TPG 430 TPGN 22 04 01 1/2 3/16 0.004 - 41285 41286 - 41287 -
TPG 431 TPGN 22 04 04 1/2 3/16 1/64 - 41288 41292 - 41296 41299
TPG 432 TPGN 22 04 08 1/2 3/16 1/32 - 41300 41304 - 41308 41309
TPG 433 TPGN 22 04 12 1/2 3/16 3/64 - 41312 41316 - 41320 -
TPG 434 TPGN 22 04 16 1/2 3/16 1/16 - 41324 41328 - 41332 -
TPG 436 TPGN 22 04 24 1/2 3/16 0.004 - 41317 41318 - 41319 -
TPG 438 TPGN 22 04 32 1/2 3/16 0.004 - 41321 41322 - 41323 -
TPG 542 TPGN 27 06 08 5/8 1/4 1/32 - 41325 41326 - 41327 -
TPG 543 TPGN 27 06 12 5/8 1/4 3/64 - 41329 41330 41337 41331 -
TPG 544 TPGN 27 06 16 5/8 1/4 1/16 - 41333 41334 41335 - -

Style TPGB

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM14 EDP#
TPGB 221 TPGB 11 03 04 1/4 1/8 1/64 0.118 41336 41340 41344
TPGB 222 TPGB 11 03 08 1/4 1/8 1/32 0.118 41348 41352 41356
TPGB 321 TPGB 16 03 04 3/8 1/8 1/64 0.125 41360 41364 41368
TPGB 322 TPGB 16 03 08 3/8 1/8 1/32 0.125 41372 41376 41380

Style TPGC

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM14 EDP#
TPGC 221 TPGC 11 03 04 1/4 3/32 1/64 0.118 41384 41388 41392
TPGC 222 TPGC 11 03 08 1/4 3/32 1/32 0.118 41396 41400 41404
TPGC 321 TPGC 16 03 04 3/8 1/8 1/64 0.125 41408 41412 41416
TPGC 322 TPGC 16 03 08 3/8 1/8 1/32 0.125 41420 41424 41428

Style TPGH

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM02 EDP# CM14 EDP# X-Treme EDP#
TPGH 21.50.5 TPGH 11 02 02 1/4 3/32 1/64 0.110 41430 41432 41434 41436 -
TPGH 21.51 TPGH 11 02 04 1/4 3/32 1/64 0.110 41444 41448 41450 41452 -
TPGH 21.52 TPGH 11 02 08 1/4 3/32 1/32 0.110 - 41429 - 41449 -
TPGH 320.5 TPGH 16 03 02 3/8 1/8 0.008 0.173 41451 41453 41454 41455 -
TPGH 321 TPGH 16 03 04 3/8 1/8 1/64 0.173 41456 41460 41462 41464 -
TPGH 322 TPGH 16 03 08 3/8 1/8 1/32 0.173 41468 41472 41474 41476 -
TPGH 431 TPGH 22 04 04 1/2 3/16 1/64 0.217 41477 41478 - - 41479
TPGH 432 TPGH 22 04 08 1/2 3/16 1/32 0.217 41475 41481 - - 41482

Style TPGM

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM02 EDP# CM14 EDP#
TPGM 21.50.5 TPGM 11 02 02 1/4 3/32 0.008 0.110 41480 41484 41486 41488
TPGM 21.51 TPGM 11 02 04 1/4 3/32 1/64 0.110 41492 41496 41498 41500
TPGM 21.52 TPGM 11 02 08 1/4 3/32 1/32 0.110 41504 41508 41510 41512
TPGM 32.51 TPGM 16 T3 04 3/8 5/32 1/64 0.173 41516 41520 41422 41524
TPGM 32.52 TPGM 16 T3 08 3/8 5/32 1/32 0.173 41528 41532 41534 41536

Style TPGT

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM02 EDP# CM14 EDP#
TPGT 21.51 TPGT 11 02 04 1/4 3/32 1/64 0.110 42220 42222 42224 42226
TPGT 21.52 TPGT 11 02 08 1/4 3/32 1/32 0.110 42229 42231 42233 42235
TPGT 32.51 TPGT 16 T3 04 3/8 5/32 1/64 0.173 42242 42244 42246 42248
TPGT 32.52 TPGT 16 T3 08 3/8 5/32 1/32 0.173 42251 42253 42255 42257
TPGT 321 TPGT 16 T3 04 3/8 1/8 1/64 0.173 42260 42262 42264 42266
TPGT 431 TPGT 22 04 04 1/2 3/16 1/64 0.217 42272 42274 42276 42278
TPGT 432 TPGT 22 04 08 1/2 3/16 1/32 0.217 42281 42283 42285 42287

Style TPGW

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM02 EDP# CM14 EDP#
TPGW 322 TPGW 16 03 08 3/8 1/8 1/32 0.173 42293 42295 42297 42299

Style TPMR

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM02 EDP# CM14 EDP# X-Treme EDP#
TPMR 730 TPMR 09 02 02 7/32 3/32 0.008 - 41576 41580 - 41584 -
TPMR 731 TPMR 09 02 04 7/32 3/32 1/64 - 41588 41592 - 41596 -
TPMR 221 TPMR 11 03 04 1/4 1/8 1/64 - 41540 41544 - 41548 -
TPMR 222 TPMR 11 03 08 1/4 1/8 1/32 - 41549 41551 - 41550 -
TPMR 321 TPMR 16 03 04 3/8 1/8 1/64 - 41552 41556 - 41560 41562
TPMR 322 TPMR 16 03 08 3/8 1/8 1/32 - 41564 41568 41575 41572 41574
TPMR 323 TPMR 16 03 12 3/8 1/8 3/64 - - 41573 41697 41577 -

Style TPU

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM02 EDP# CM14 EDP# X-Treme EDP#
TPU 221 TPUN 11 03 04 1/4 1/8 1/64 - 41648 41652 - 41656 -
TPU 222 TPUN 11 03 08 1/4 1/8 1/32 - 41660 41664 - 41668 -
TPU 321 TPUN 16 03 04 3/8 1/8 1/64 - 41672 41676 - 41680 -
TPU 322 TPUN 16 03 08 3/8 1/8 1/32 - 41684 41688 - 41692 41694
TPU 323 TPUN 16 03 12 3/8 1/8 3/64 - 41696 41700 - 41704 -
TPU 324 TPUN 16 04 16 3/8 1/8 1/16 - 41708 41712 - 41716 -
TPU 431 TPUN 22 04 04 1/2 3/16 1/64 - - - - 41718 -
TPU 432 TPUN 22 04 08 1/2 3/16 1/32 - 41732 41736 41738 41740 41741
TPU 433 TPUN 22 04 12 1/2 3/16 3/64 - 41744 41748 - 41752 -
TPU 434 TPUN 22 04 16 1/2 3/16 1/16 - 41756 41760 - 41764 -

Style TT

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM14 EDP#
TT 221 TT 11 03 04 1/4 1/8 1/64 0.090 41768 41772 41776
TT 222 TT 11 03 08 1/4 1/8 1/32 0.090 41780 41784 41788
TT 321 TT 16 03 04 3/8 1/8 1/64 0.150 41792 41796 41800
TT 322 TT 16 03 08 3/8 1/8 1/32 0.150 41804 41808 41812
TT 323 TT 16 03 12 3/8 1/8 3/64 0.150 41816 41820 41824
TT 431 TT 22 04 04 1/2 3/16 1/64 0.203 41828 41832 41836
TT 432 TT 22 04 08 1/2 3/16 1/32 0.203 41840 41844 41848
TT 433 TT 22 04 12 1/2 3/16 3/64 0.203 41852 41856 41860

VBMT to WNMG

Style VBMT

  • Screw on insert
  • 5° Relief angle
  • For finishing and profile cuts
  • Single sided with chipbreaker
Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM02 EDP# CM14 EDP#
VBMT 221CF VBMT 11 03 04 1/4 1/8 1/64 0.110 - - 44570 44572
VBMT 222CF VBMT 11 03 08 1/4 1/8 1/32 0.110 - - 44574 44576
VBMT 331CF VBMT 16 04 04 3/8 3/16 1/64 0.173 44577 44579 44578 44580
VBMT 332CF VBMT 16 04 08 3/8 3/16 1/32 0.173 44581 44583 44582 44584

Style VNMG

  • 0° Relief angle
  • 35° Diamond with chipbreaker
  • Combo pin and clamp insert
  • Double sided insert with chipbreaker
  • For medium to rough cuts
  • For turning and finishing on a wide variety of materials
Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM02 EDP# CM14 EDP# X-Treme EDP#
VNMG 331 VNMG 16 04 04 3/8 3/16 1/64 0.150 41864 41868 41870 41872 41873
VNMG 332 VNMG 16 04 08 3/8 3/16 1/32 0.150 41876 41880 41882 41884 41885
VNMG 431 VNMG 22 04 04 1/2 3/16 1/64 0.203 41888 41892 41894 41896 41899
VNMG 432 VNMG 22 04 08 1/2 3/16 1/32 0.203 41900 41904 41906 41908 41911
VNMG 433 VNMG 22 04 12 1/2 3/16 3/64 0.203 41912 41916 41918 41920 -

Style VNMP

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM02 EDP# CM14 EDP#
VNMP 331 VNMP 16 04 04 3/8 3/16 1/64 0.150 42054 42058 - 42062
VNMP 332 VNMP 16 04 08 3/8 3/16 1/32 0.150 42066 42070 - 42074

Style WCMT

  • Chipbreaker for finishing
  • Use for turning and boring
  • Single sided with chip control
Insert Style ISO Designation I.C. Width Corner Radius Thru Hole CM02 EDP# CM14 EDP#
WCMT 21.51 WCMT 04 02 04 1/4 3/32 1/64 0.110 44586 44588
WCMT 32.52 WCMT 06 T3 08 3/8 5/32 1/32 0.173 44590 44592

Style WNMA

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole CM02 EDP#
WNMA 432 WNMA 08 04 08 1/2 3/16 0.031 0.203 42050

Style WNMG

  • 80° Trigon with chipbreaker
  • 0° Relief angle
  • Combo pin and clamp insert
  • All purpose chipbreaker for medium machining
  • For Stainless steel, cast iron, and high temperature alloys
Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM02 EDP# CM14 EDP# X-Treme EDP#
WNMG 331 WNMG 06 04 04 3/8 3/16 1/64 0.150 41921 41922 41923 41931 -
WNMG 332 WNMG 06 04 08 3/8 3/16 1/32 0.150 41925 41926 41927 41929 -
WNMG 431 WNMG 08 04 04 1/2 3/16 1/64 0.203 41924 41928 41930 41932 41934
WNMG 432 WNMG 08 04 08 1/2 3/16 1/32 0.203 41936 41940 41942 41944 41946
WNMG 433 WNMG 22 04 12 1/2 3/16 3/64 0.203 - - - 41945 -

Style CCGT

  • Screw-on style insert
  • For semi-finishing and finishing on a wide range of materials
  • Chipbreaker for shallow depths of cuts and low feed rates

CLICK HERE | CCGT

Style CCGT Insert

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM02 EDP# CM14 EDP# X-Treme EDP#
CCGT 21.50 CCGT 06 02 02 1/4 3/32 0.008 0.110 40008 40010 40012 40014 -
CCGT 21.51 CCGT 06 02 04 1/4 3/32 1/64 0.110 40016 40018 40020 40022 -
CCGT 21.52 CCGT 06 02 08 1/4 3/32 1/32 0.110 40024 40026 40028 40030 -
CCGT 32.50 CCGT 09 T3 02 3/8 5/32 0.008 0.173 40032 40034 40036 40038 40037
CCGT 32.51 CCGT 09 T3 04 3/8 5/32 1/64 0.173 40040 40042 40044 40046 -
CCGT 32.52 CCGT 09 T3 08 3/8 5/32 1/32 0.173 40048 40050 40052 40054 -
CCGT 431 CCGT 12 04 04 1/2 3/16 1/64 0.217 40056 40058 40060 40062 -
CCGT 432 CCGT 12 04 08 1/2 3/16 1/32 0.217 40064 40066 40068 40070 -

Style CCMT Insert

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM02 EDP# CM14 EDP# X-Treme EDP#
CCMT 21.50 CCMT 06 02 02 1/4 3/32 0.008 0.110 40088 40092 40094 40096 40095
CCMT 21.51 CCMT 06 02 04 1/4 3/32 1/64 0.110 40100 40104 40106 40108 -
CCMT 21.52 CCMT 06 02 08 1/4 3/32 1/32 0.110 40112 40116 40118 40120 40119
CCMT 32.50 CCMT 09 T3 02 3/8 5/32 0.008 0.173 40121 40122 40123 40125 -
CCMT 32.51 CCMT 09 T3 04 3/8 5/32 1/64 0.173 40124 40128 40130 40132 40131
CCMT 32.52 CCMT 09 T3 08 3/8 5/32 1/32 0.173 40136 40140 40142 40144 40143
CCMT 431 CCMT 12 04 04 1/2 3/16 1/64 0.217 40146 40148 40149 40150 -
CCMT 432 CCMT 12 04 08 1/2 3/16 1/32 0.217 40152 40154 40155 40156 40153

Style CNMA Insert

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP # C550 EDP # CM14 EDP #
CNMA 431 CNMA 12 04 04 1/2 3/16 1/64 0.203 44100 44104 44108
CNMA 432 CNMA 12 04 08 1/2 3/16 1/32 0.203 44112 44116 44120
CNMA 433 CNMA 12 04 12 1/2 3/16 3/64 0.203 44124 44128 44132
CNMA 542 CNMA 16 06 08 5/8 1/4 1/32 0.250 44109 44110 44111
CNMA 543 CNMA 16 06 12 5/8 1/4 3/64 0.250 44121 44122 44123
CNMA 544 CNMA 16 06 16 5/8 1/4 1/16 0.250 44133 44134 44135
CNMA 642 CNMA 19 06 08 3/4 1/4 1/32 0.312 44136 44140 44144
CNMA 643 CNMA 19 06 12 3/4 1/4 3/64 0.312 44148 44152 44156
CNMA 644 CNMA 19 06 16 3/4 1/4 1/16 0.312 44157 44158 44159

Style CNMG Insert

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM02 EDP# CM14 EDP# X-Treme EDP#
CNMG 321 CNMG 09 03 04 1/2 1/8 1/64 0.150 - 40197 - 40159 -
CNMG 431 CNMG 12 04 04 1/2 3/16 1/64 0.203 40160 40164 40166 40168 40169
CNMG 432 CNMG 12 04 08 1/2 3/16 1/32 0.203 40172 40176 40178 40180 40179
CNMG 433 CNMG 12 04 12 1/2 3/16 3/64 0.203 40184 40188 40190 40192 -
CNMG 434 CNMG 12 04 16 1/2 3/16 1/16 0.203 40196 40200 40202 40204 40205
CNMG 542 CNMG 16 06 08 5/8 1/4 1/32 0.250 40208 40212 40214 40216 -
CNMG 543 CNMG 16 06 12 5/8 1/4 3/64 0.250 40220 40224 40226 40228 -
CNMG 544 CNMG 16 06 16 5/8 1/4 1/16 0.250 40229 40230 40231 40233 -
CNMG 642 CNMG 19 06 08 3/4 1/4 1/32 0.312 40232 40236 40238 40240 -
CNMG 643 CNMG 19 06 12 3/4 1/4 3/64 0.312 40244 40248 40250 40252 -
CNMG 644 CNMG 19 06 16 3/4 1/4 1/16 0.312 40256 40260 40262 40264 -

Style CNMM Insert

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM02 EDP# CM14 EDP#
CNMM 432 CNMM 12 04 08 1/2 3/16 1/32 0.203 44288 44292 44294 44296
CNMM 433 CNMM 12 04 12 1/2 3/16 3/64 0.203 44300 44304 44306 44308
CNMM 642 CNMM 19 06 08 3/4 1/4 1/32 0.312 44312 44316 44318 44320
CNMM 643 CNMM 19 06 12 3/4 1/4 3/64 0.312 44324 44328 44330 44332

Style CNMP Insert

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM02 EDP# CM14 EDP# X-Treme EDP#
CNMP 431 CNMP 12 04 04 1/2 3/16 1/64 0.203 44650 44652 44654 44656 -
CNMP 432 CNMP 12 04 08 1/2 3/16 1/32 0.203 44658 44660 44662 44664 44661
CNMP 433 CNMP 12 04 12 1/2 3/16 3/64 0.203 44666 44668 44670 44672 -
CNMP 642 CNMP 19 06 08 3/4 1/4 1/32 0.312 44674 44676 44678 44680 -
CNMP 643 CNMP 19 06 12 3/4 1/4 3/64 0.312 44682 44684 44686 44688 -

Style CPGM Insert

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM02 EDP# CM14 EDP#
CPGM 21.50 CPGM 06 02 02 1/4 3/32 0.008 0.110 40316 40320 40322 40324
CPGM 21.51 CPGM 06 02 04 1/4 3/32 1/64 0.110 40328 40332 40334 40336
CPGM 21.52 CPGM 06 02 08 1/4 3/32 1/32 0.110 40340 40344 40346 40348
CPGM 32.51 CPGM 09 T3 04 3/8 3/8 1/64 0.173 40352 40356 40358 40360

Style CPGT Insert

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM02 EDP# CM14 EDP#
CPGT 21.50 CPGT 06 02 02 1/4 3/32 0.008 0.110 44336 44340 44342 44344
CPGT 21.51 CPGT 06 02 04 1/4 3/32 1/64 0.110 44348 44352 44354 44356
CPGT 21.52 CPGT 06 02 08 1/4 3/32 1/32 0.110 44360 44364 44366 44368
CPGT 32.51 CPGT 09 T3 04 3/8 3/8 1/64 0.173 44372 44376 44378 44380
CPGT 32.52 CPGT 09 T3 08 3/8 3/8 1/32 0.173 44384 44388 44390 44392

Style CPMT Insert

Insert Style ISO Designation I.C. Width Corner Radius Thru Hole C520 EDP# C550 EDP# CM02 EDP# CM14 EDP#
CPMT 21.505 CPMT 06 02 02 1/4 3/32 0.008 0.110 40376 40380 40382 40384
CPMT 21.51 CPMT 06 02 04 1/4 3/32 1/64 0.110 40388 40392 40394 40396
CPMT 32.505 CPMT 09 T3 02 3/8 5/32 0.008 0.173 40400 40404 40406 40408
CPMT 32.51 CPMT 09 T3 04 3/8 5/32 1/64 0.173 40412 40416 40418 40420
CPMT 32.52 CPMT 09 T3 08 3/8 5/32 1/32 0.173 40424 40428 40430 40432

CCGT

CCMT

CNMA

CNMG

CNMM

CNMP

CPGM

CPGT

CPMT

DCMT

DNMG

DNMP

DPMT
